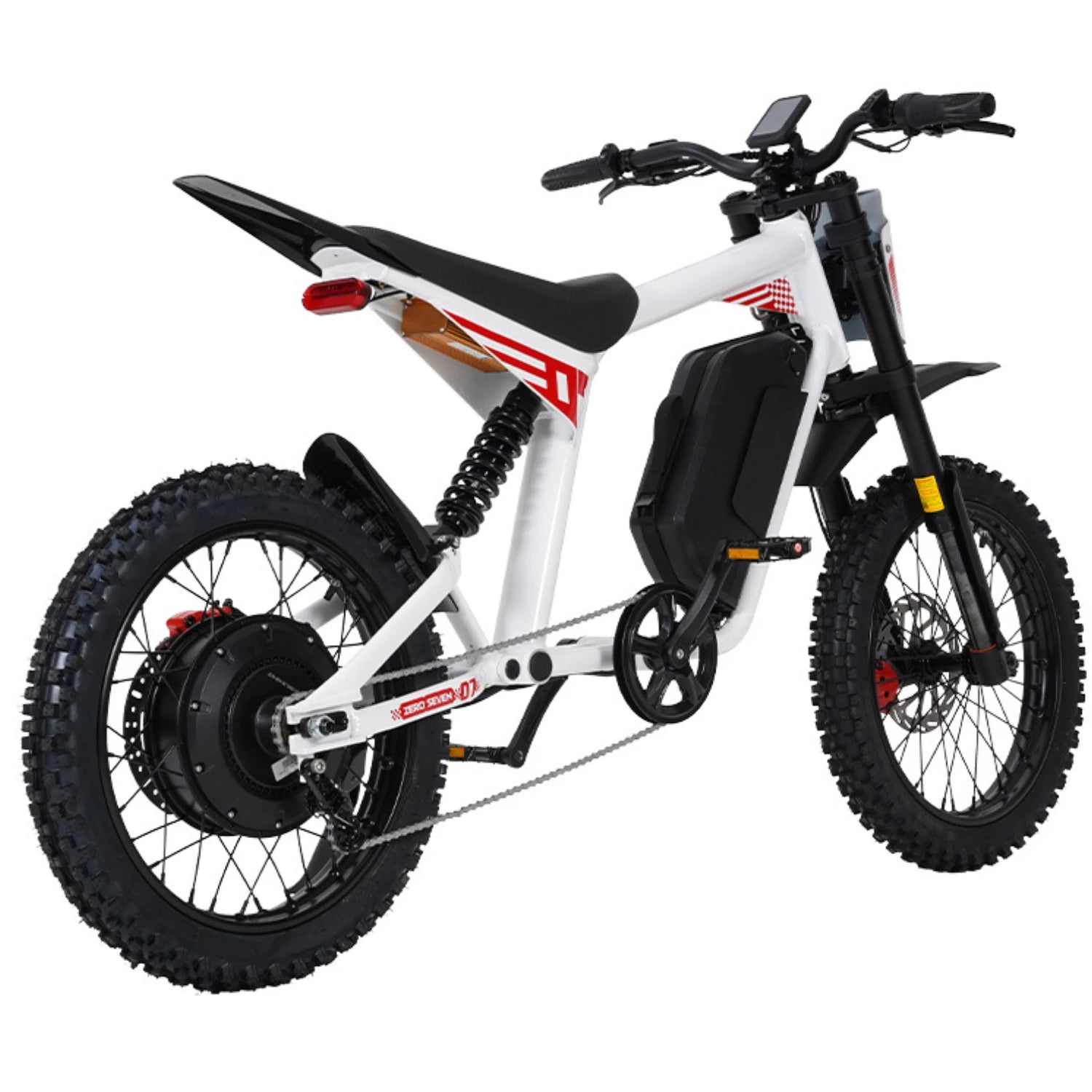

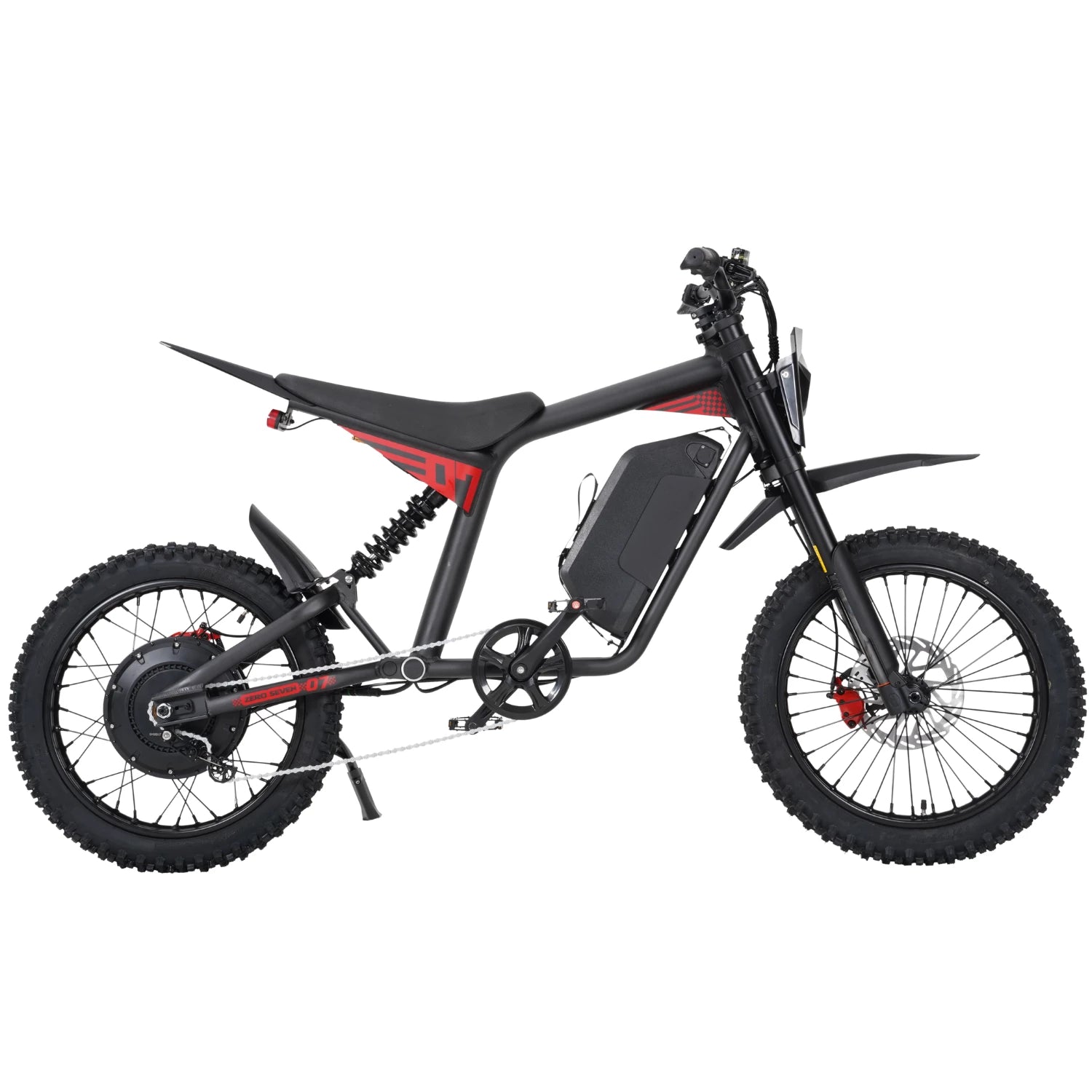

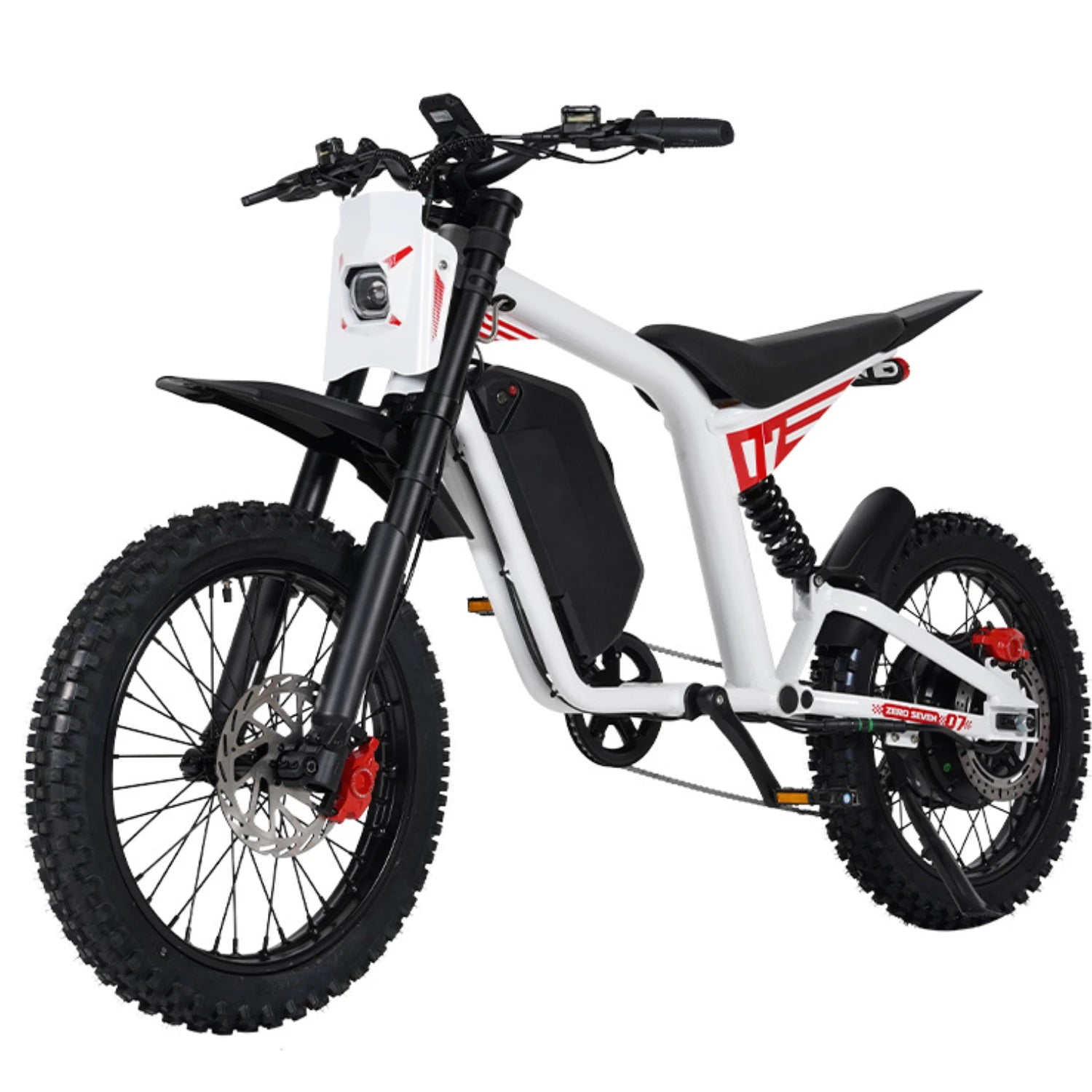

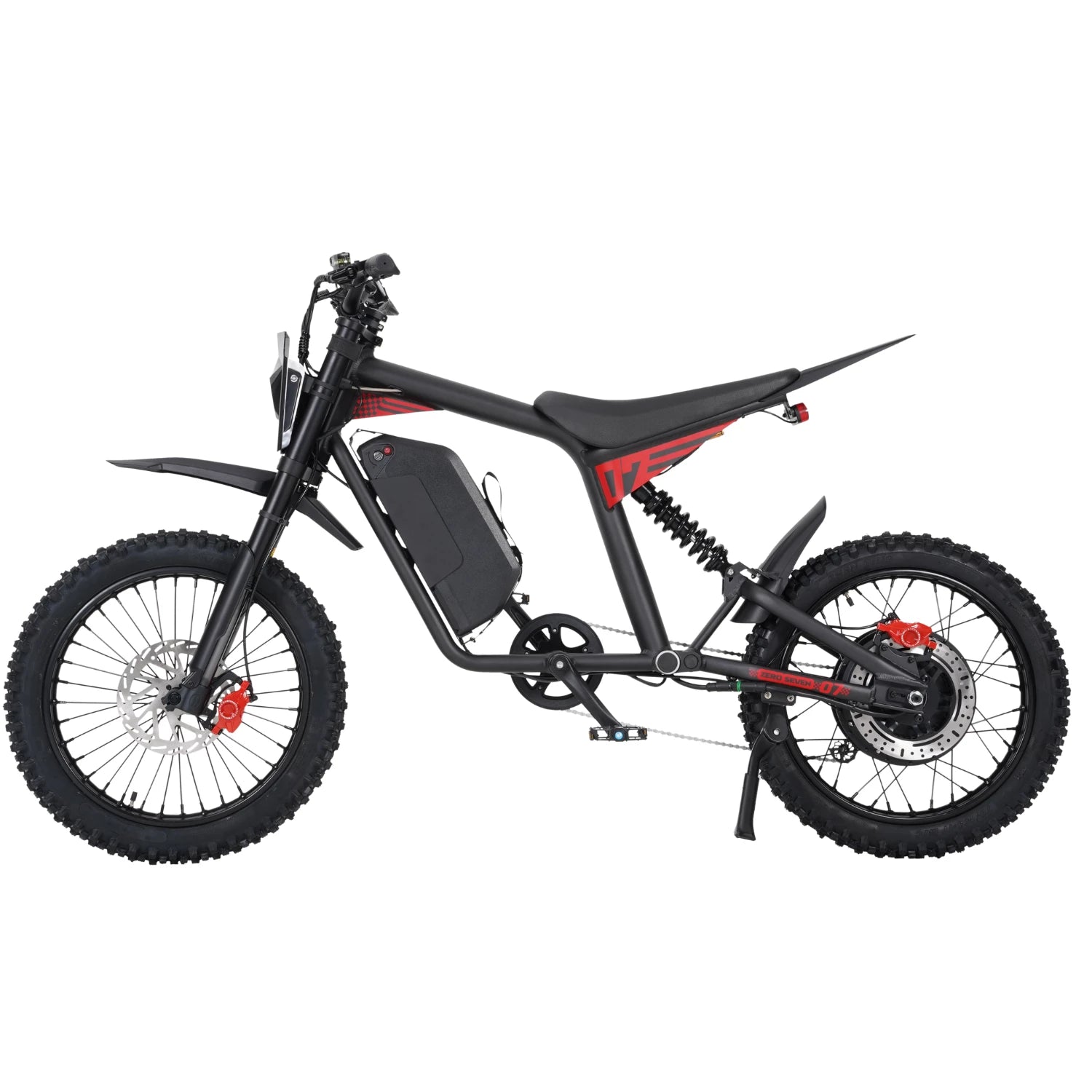

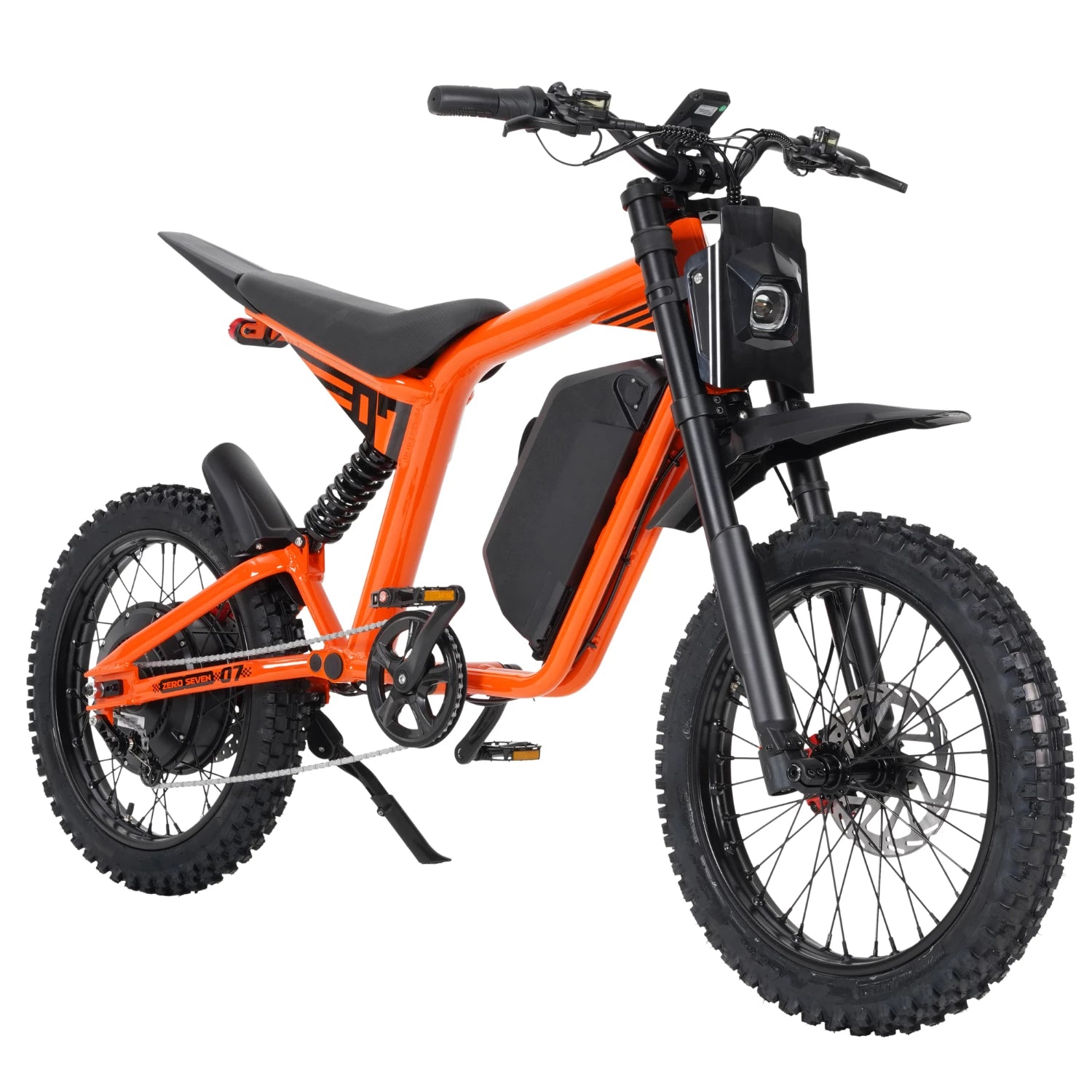

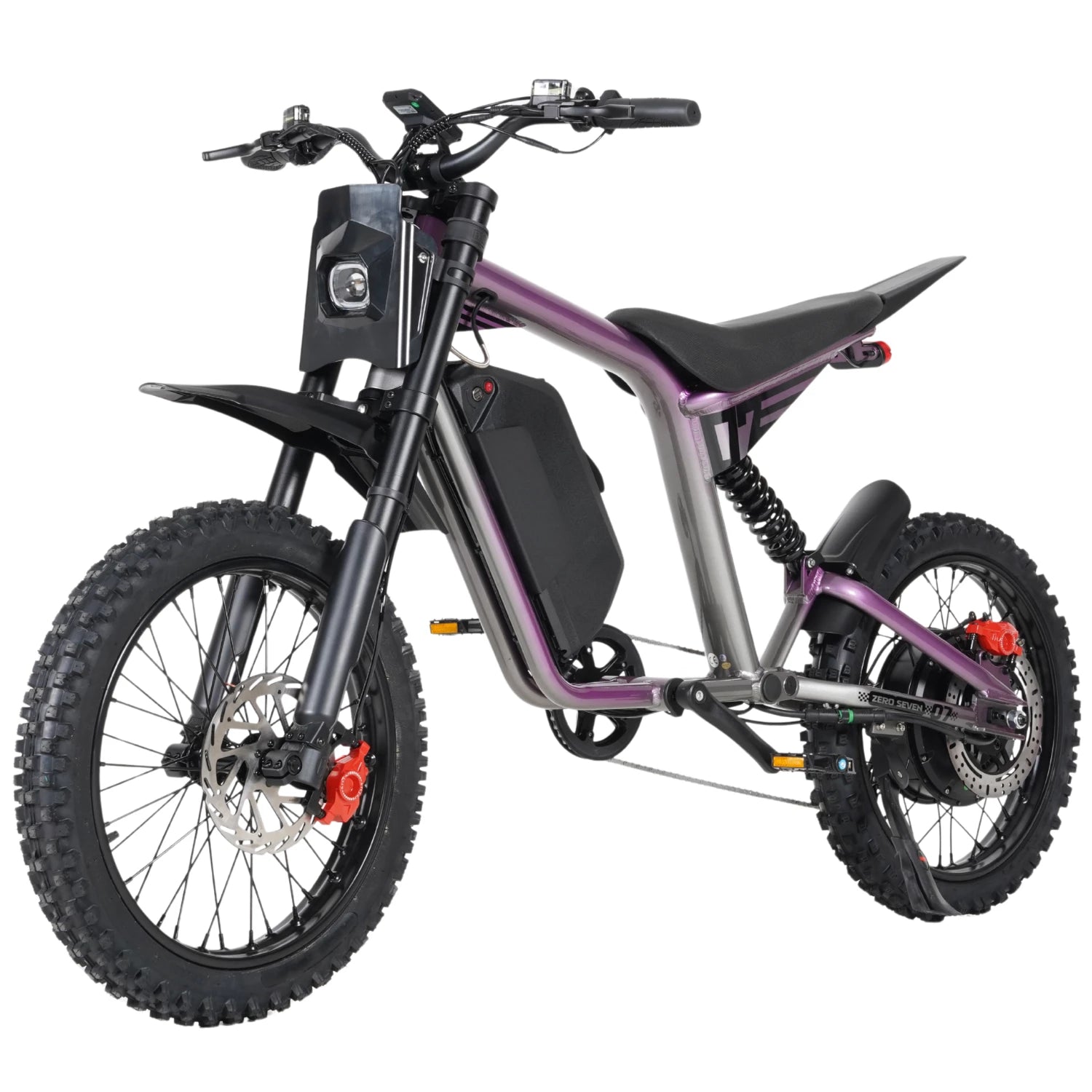

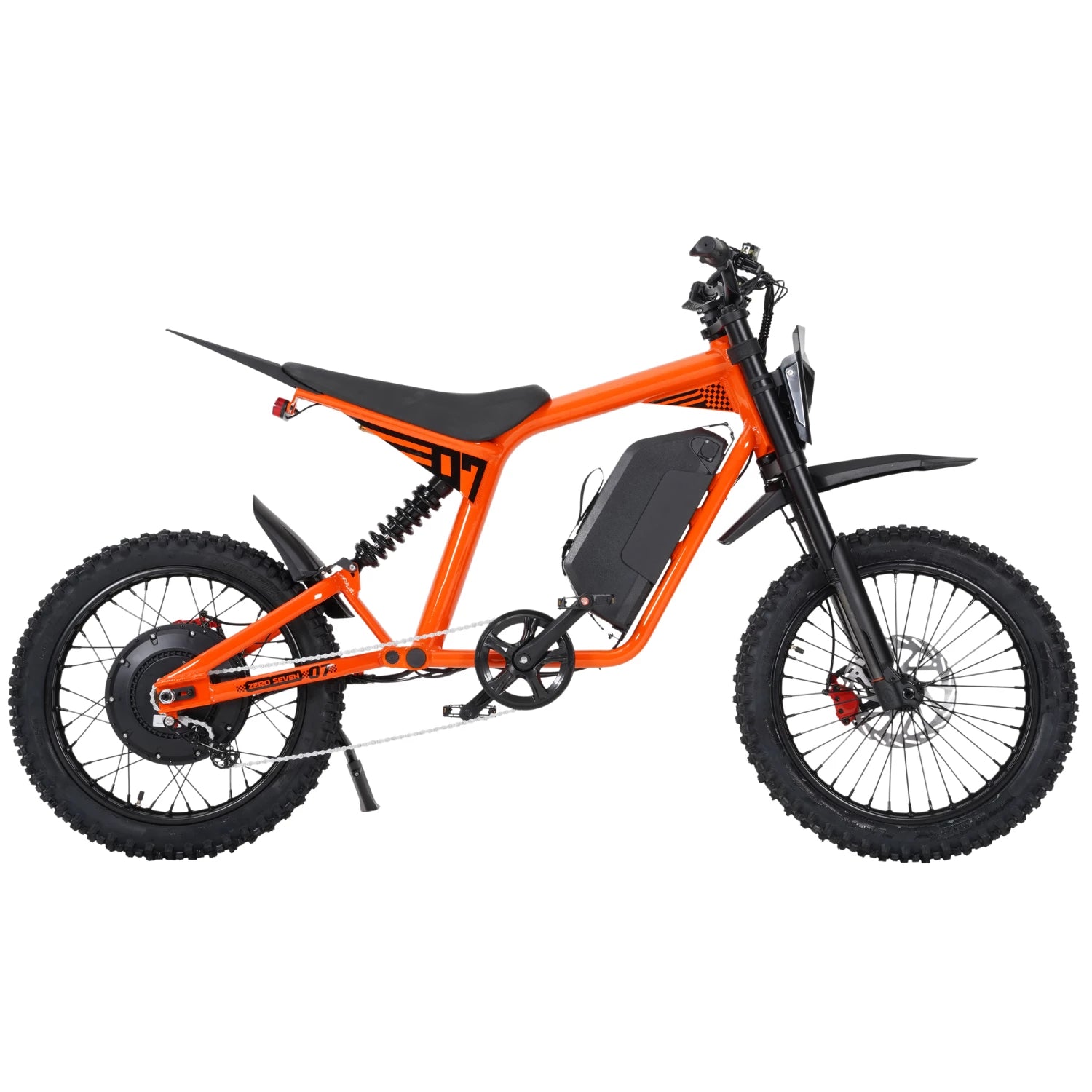

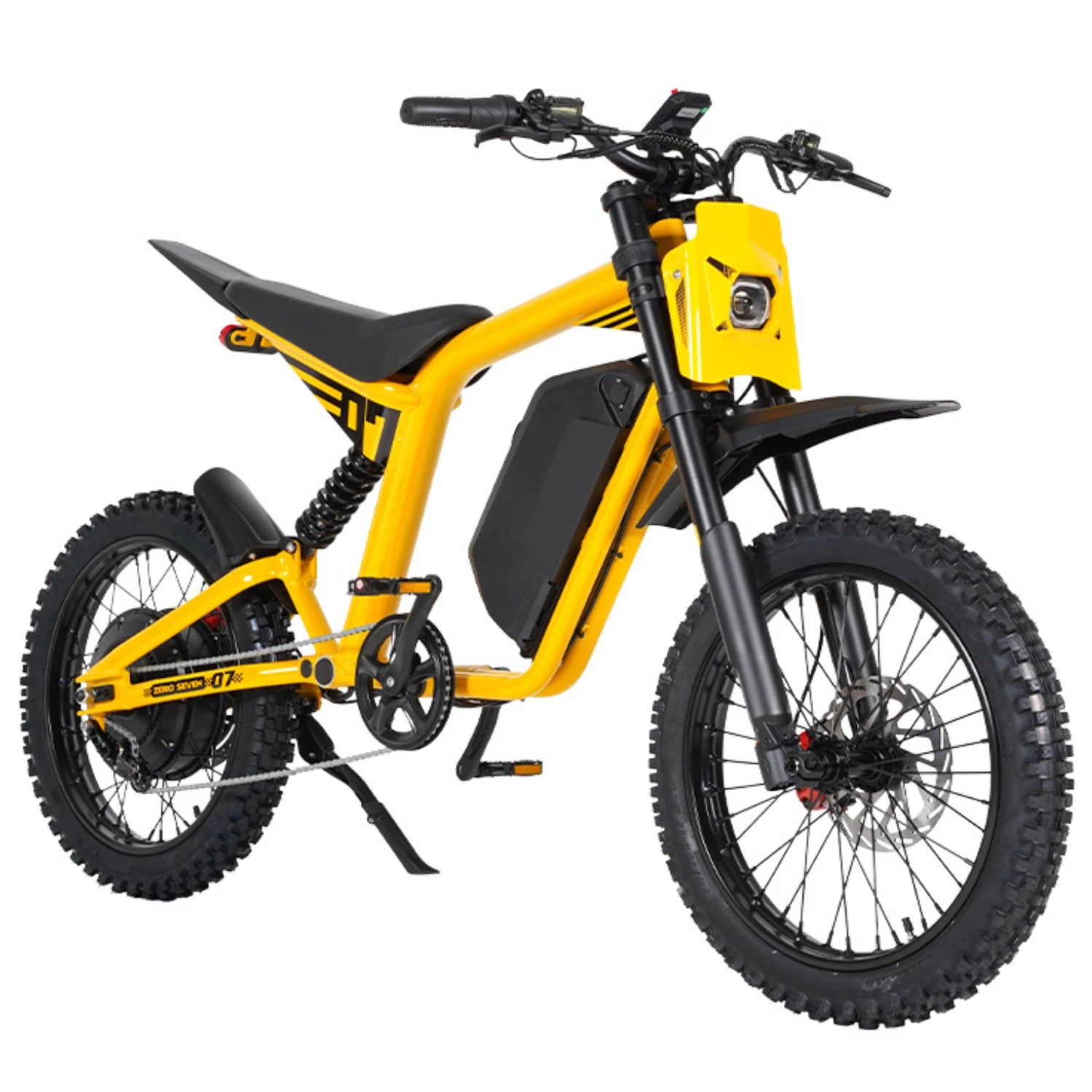

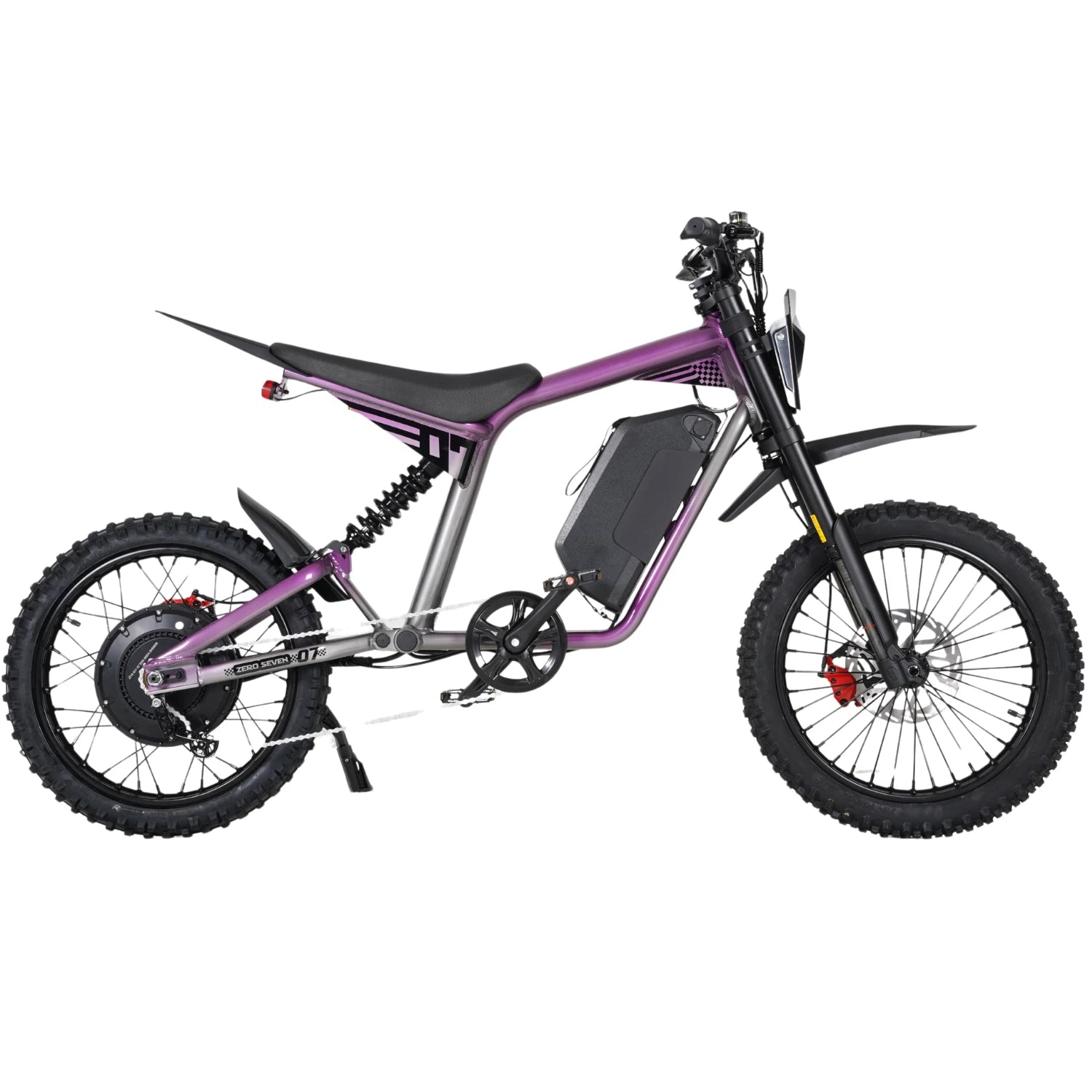

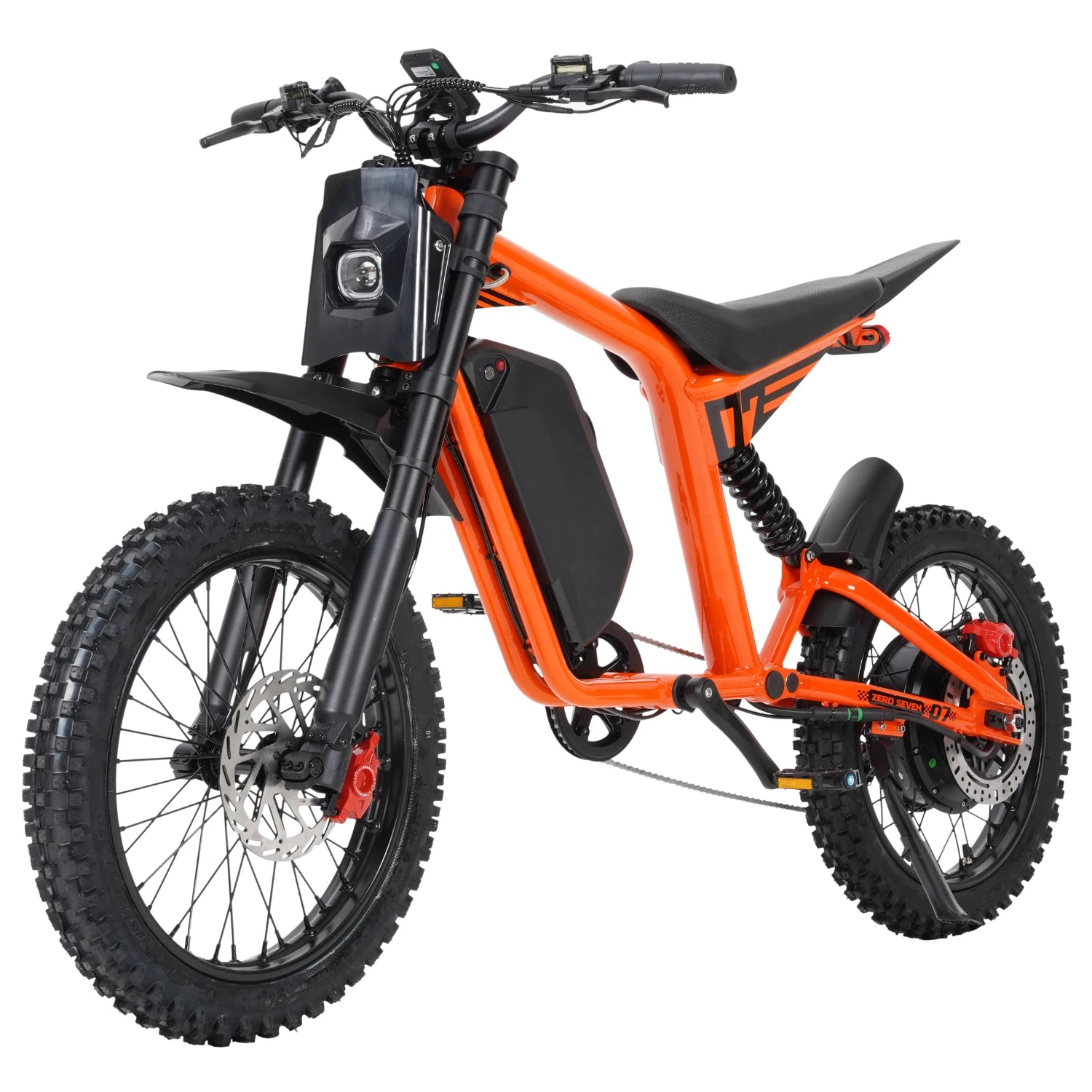

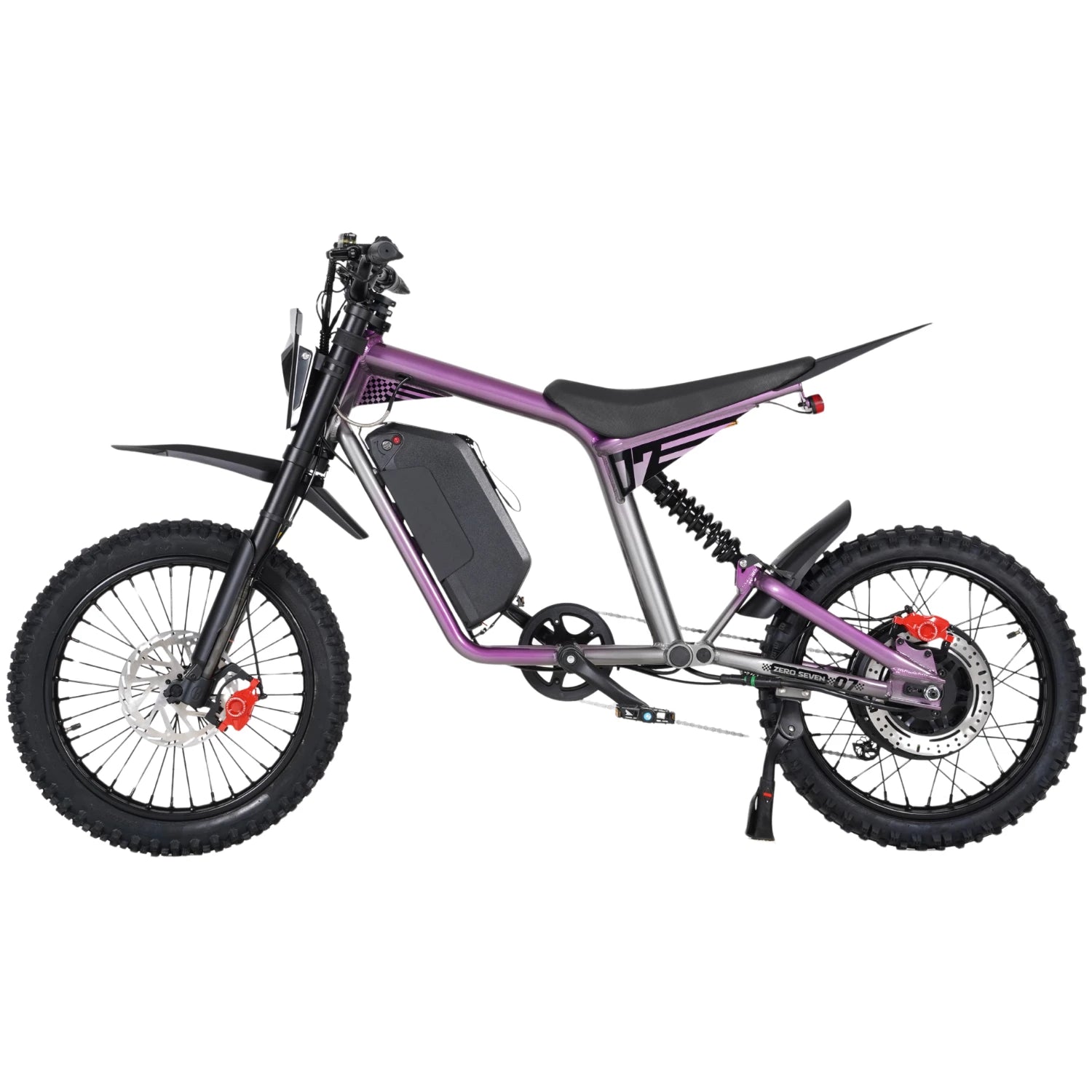

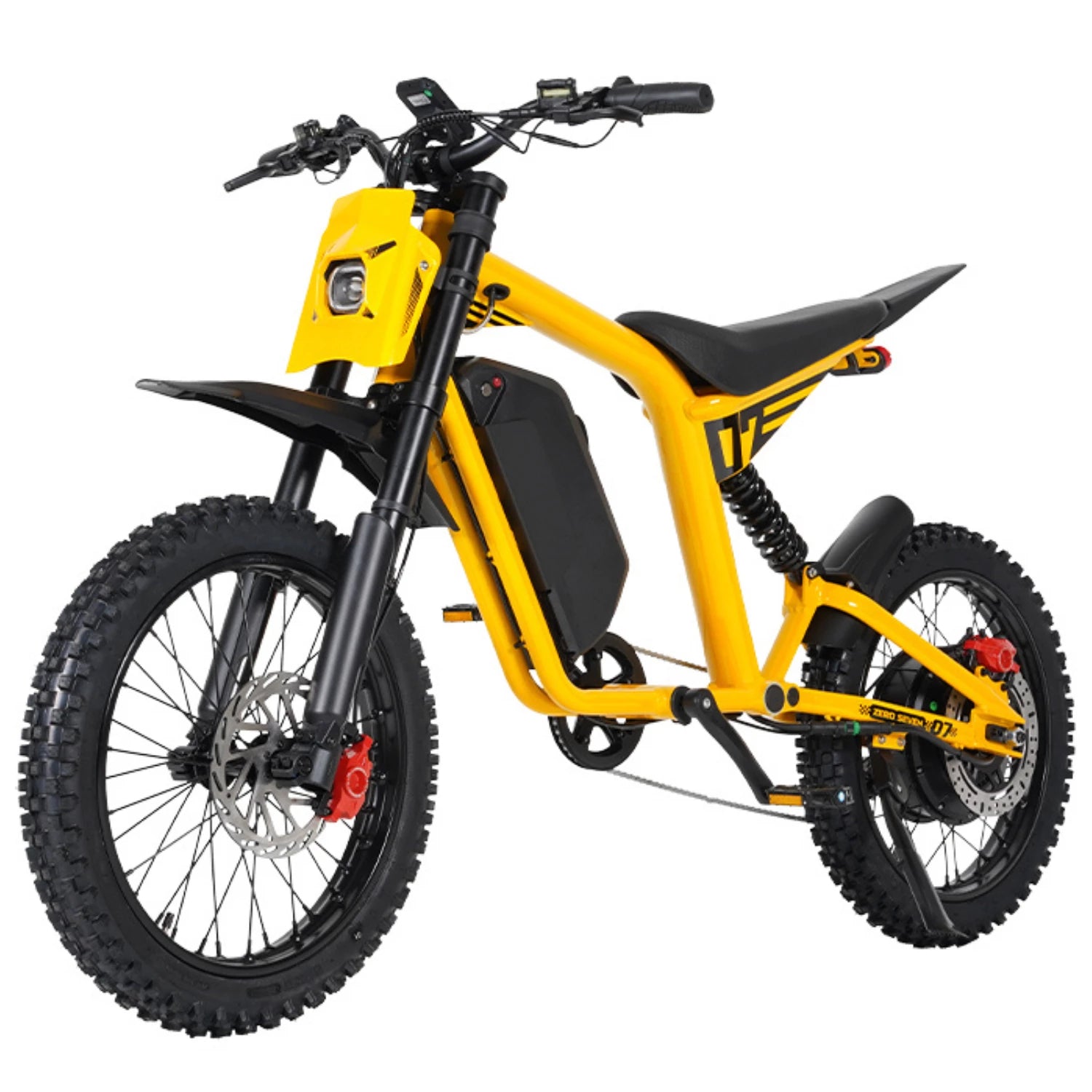

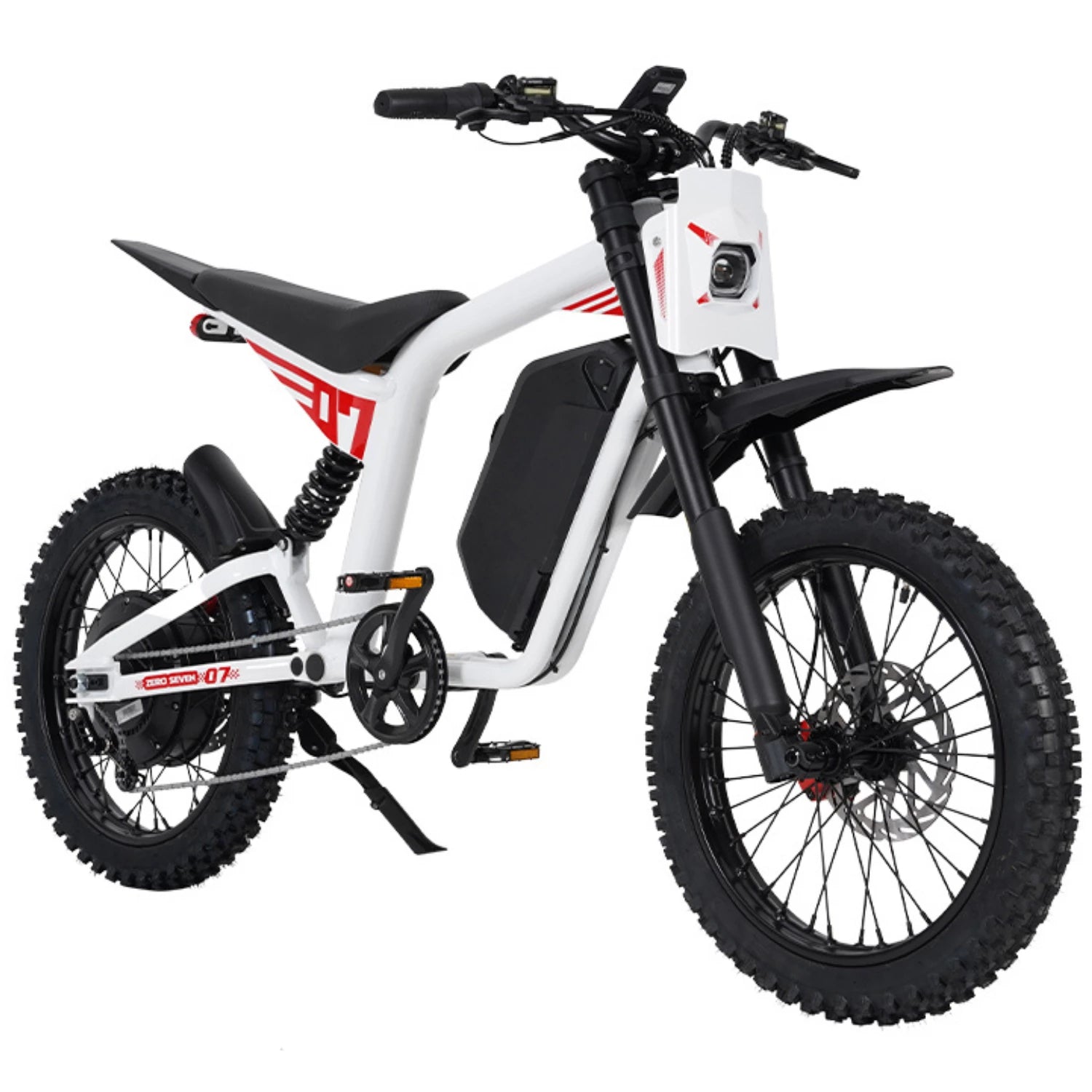

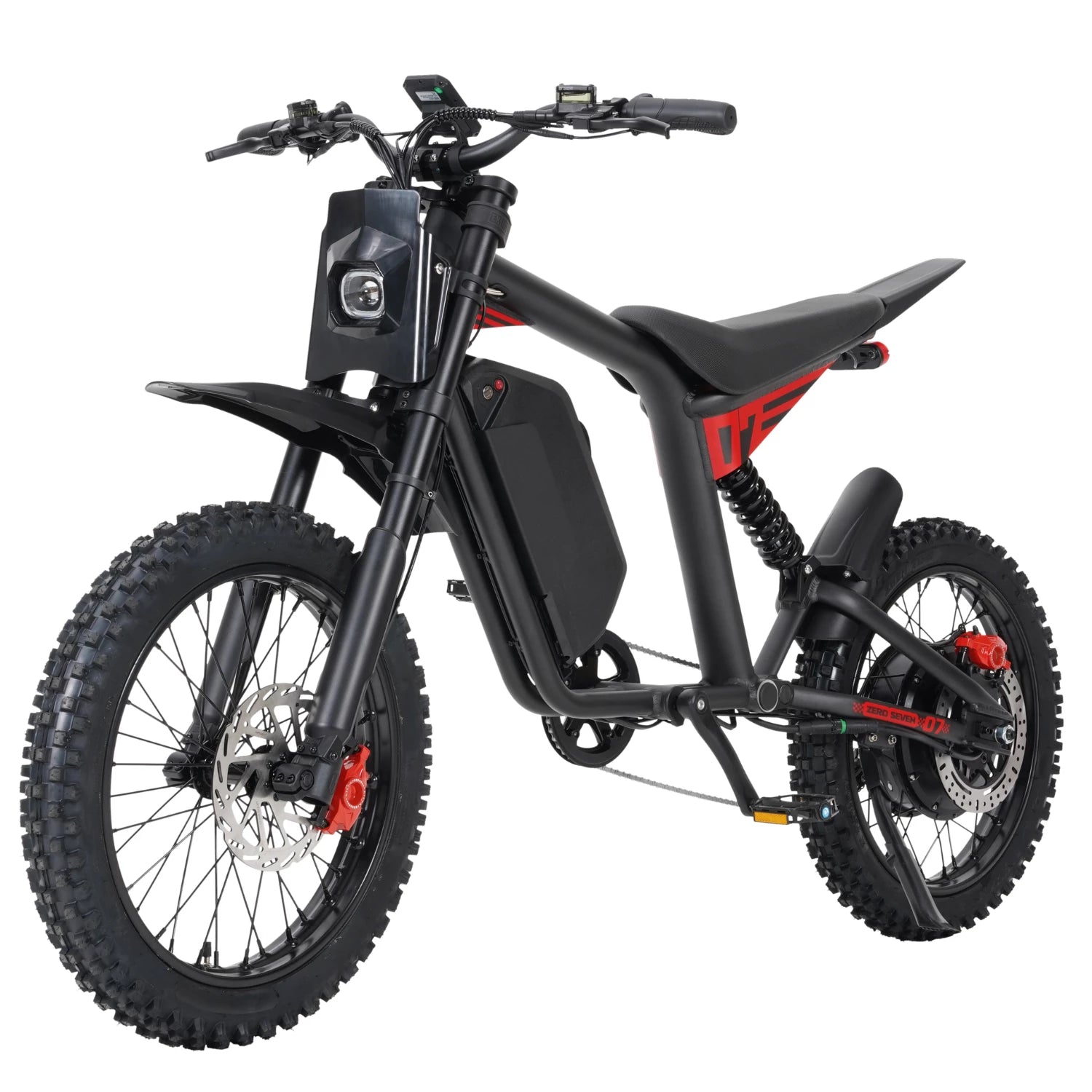

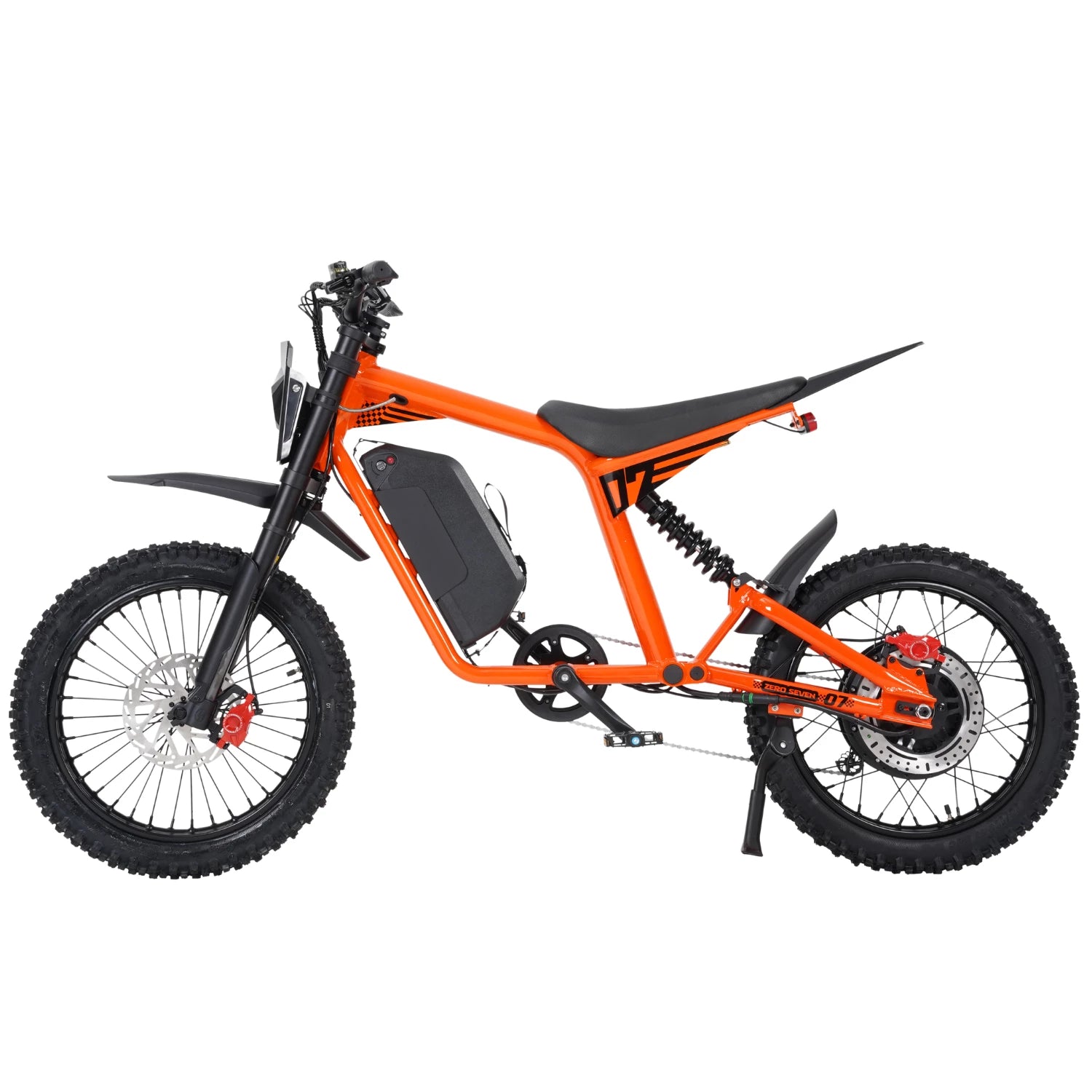

Mangosteen FT07 Electric Dirt Bike
- Unrivaled Power Speed: Experience the thrill of the FT07 electric dirt bike, powered by a massive 3000W peak (2500W nominal) brushless hub motor. This electric motorcycle for adults delivers explosive torque of 145N·m and top speeds of 45 MPH in Off-Road mode, 20 MPH in City mode, effortlessly conquering steep slopes up to 45°. A responsive pedal-assist sensor guarantees fluid pedaling, while the advanced four-piston hydraulic brakes with 220 mm rotors deliver superior stopping strength for maximum security.It’s the ultimate high-performance adult e bike for dominating any terrain.
- Long-Range 60V Battery System: Engineered for extended adventures, this e bike features a high-performance 60V 25Ah (1500Wh) lithium battery. Achieve up to 50 miles on a single charge. Combining with pedal-assisted riding can extend the cruising range even further.With an 80A BMS and included 5A fast charger, this electric bike for adults reduces downtime, getting you back on the trail in just 5 hours.
- Robust Build and Adjustable Shock Absorption：Designed to support riders up to 265 lbs,Equipped with dual opposing-piston brakes—offering superior performance compared to traditional braking systems—this vehicle also features one-touch ignition and three distinct riding modes: Mode 1 (30 km/h), Mode 2 (50 km/h), and Mode 3 (70 km/h). This configuration delivers a comprehensive and versatile riding experience tailored to users of varying skill levels.

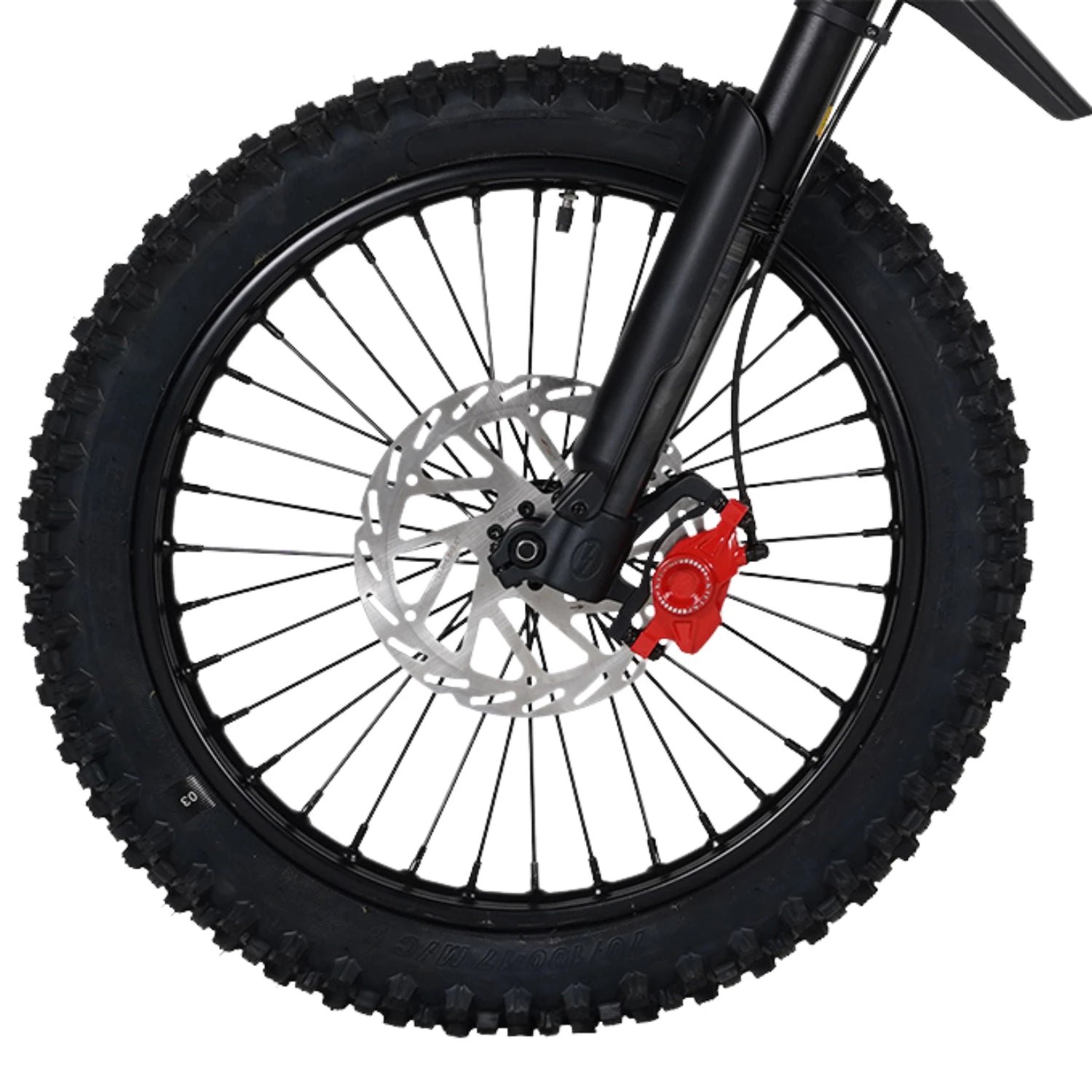

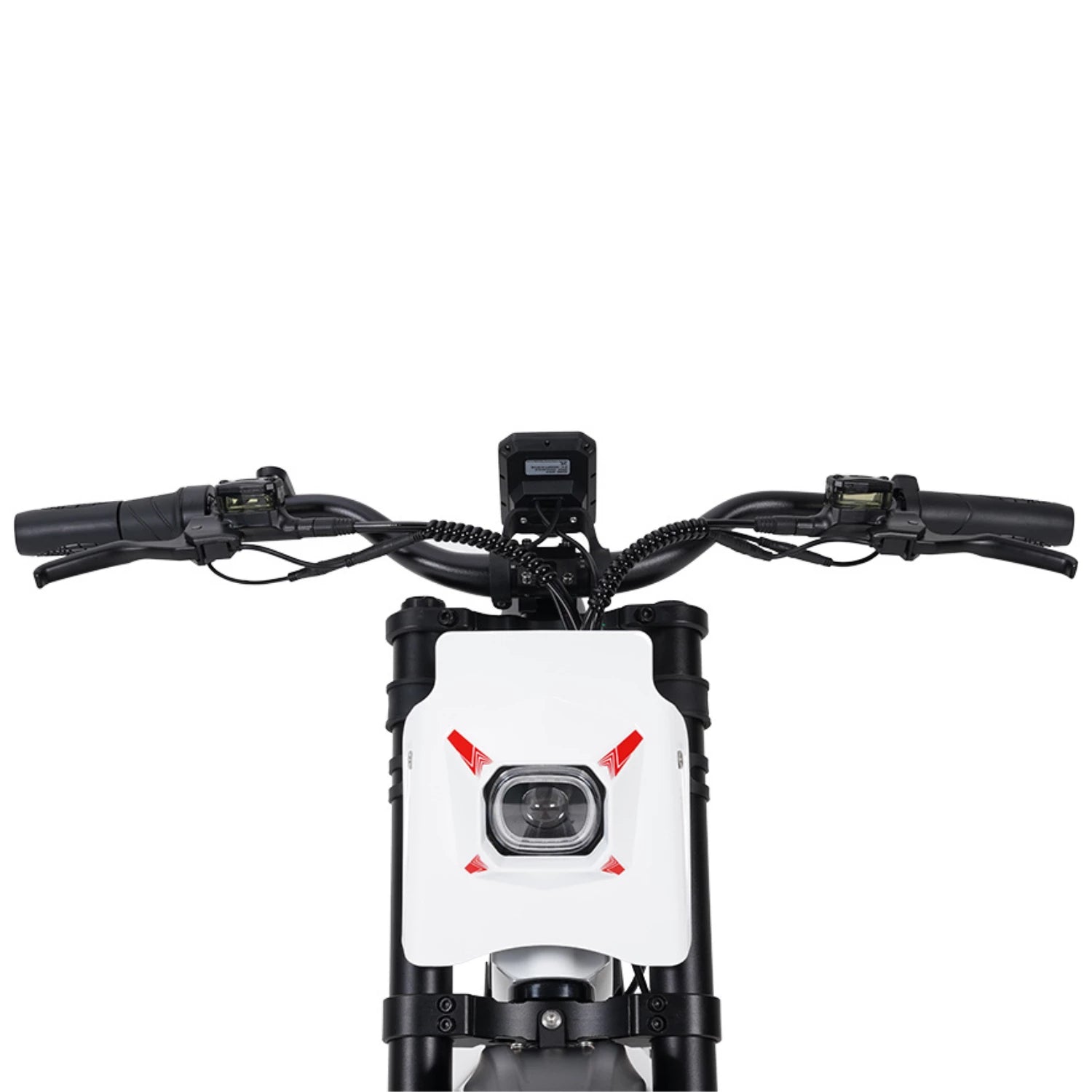

- Superior Hydraulic Braking & Lighting: Ride with confidence day or night. The ft07 electric bicycle features powerful 4-piston hydraulic disc brakes on both wheels with 220mm rotors for reliable, all-weather stopping power. A super-bright 1200-lumen LED headlight and integrated brake light ensure maximum visibility, making these e bikes a safe choice for any adventure.
- All-Terrain Suspension & Stability: Built with a high-aluminum steel pipe frame and high-performance hydraulic front & rear shock absorbers, the ft07 electric dirt bike ensures a smooth, controlled ride. Paired with 17" motorcycle-grade, puncture-resistant tires, this adult e bike absorbs impacts from the roughest trails, providing unmatched comfort and durability.
- Easy Setup & Comprehensive Warranty: Your ft07 e bike arrives mostly assembled with a complete toolkit and installation accessories. Backed by a 1-year warranty, lifetime technical support service centers
| Term | Details |
|---|---|
| Battery | 60V 25Ah 1500Wh（Peak power 3000W） |
| Power | 2000W（Peak power 3000W） |
| Max Output Torque | 145 Nm |
| Rated Capacity | 25 Ah |
| Single Cell Capacity | 5000 mAh |
| Battery Configuration | 16S5P |
| Maximum Charging Voltage | 67.2 V |
| Charging time | 5 hours |
| Range | Pure Electric Range:50 km Max Assisted Range:90 km |
| Suitable Terrain | All-terrain off-road electric bicycle |
| Operating Temperature | (-10℃—50℃) |
| Overall vehicle mass (kg) | 50kg |
| Handlebar Material | All Aluminum |
| Left Handlebar Accessories | Brake, Power Switch, Gear Shift Switch, Throttle Switch, Headlight Switch, Horn Switch |
| Right Handlebar Accessories | Brake |
| Vehicle Suspension | Damping — Lockable Hydraulic Front Shocks / Dual Spring Rear Shocks |
| Maximum speed | 25km/h-70km/h |
| Tire Wheel | Off-road tire Rear 70/100-17,Front 70/100-19 |
| Tire Pressure (front/rear) | 280KPa |
| Packing size LxWxH | 1860*740*1040mm |
| Power Battery Type and Capacity | Lithium Ternary Battery |
| Brake System | Hydraulic disc brakes |
| Motor-rated output power (W) | 2500w |
| Charger | 5A |
| Seat Height: | 800 mm |
| Wheelbase | 1280 mm |
| Minimum Ground Clearance | 170 mm |
| Front and Rear Wheel Rim Sizes | 17" (Front) / 17" (Rear) |
| Climbing angle | 20° |
| Headlight Specifications (High-beam) | 90 × 40 × 55 mm |
| Headlight Operating Current | 0.1 A |
| Headlight Operating Voltage | 48–80 V |
| Electric Horn | Yes |

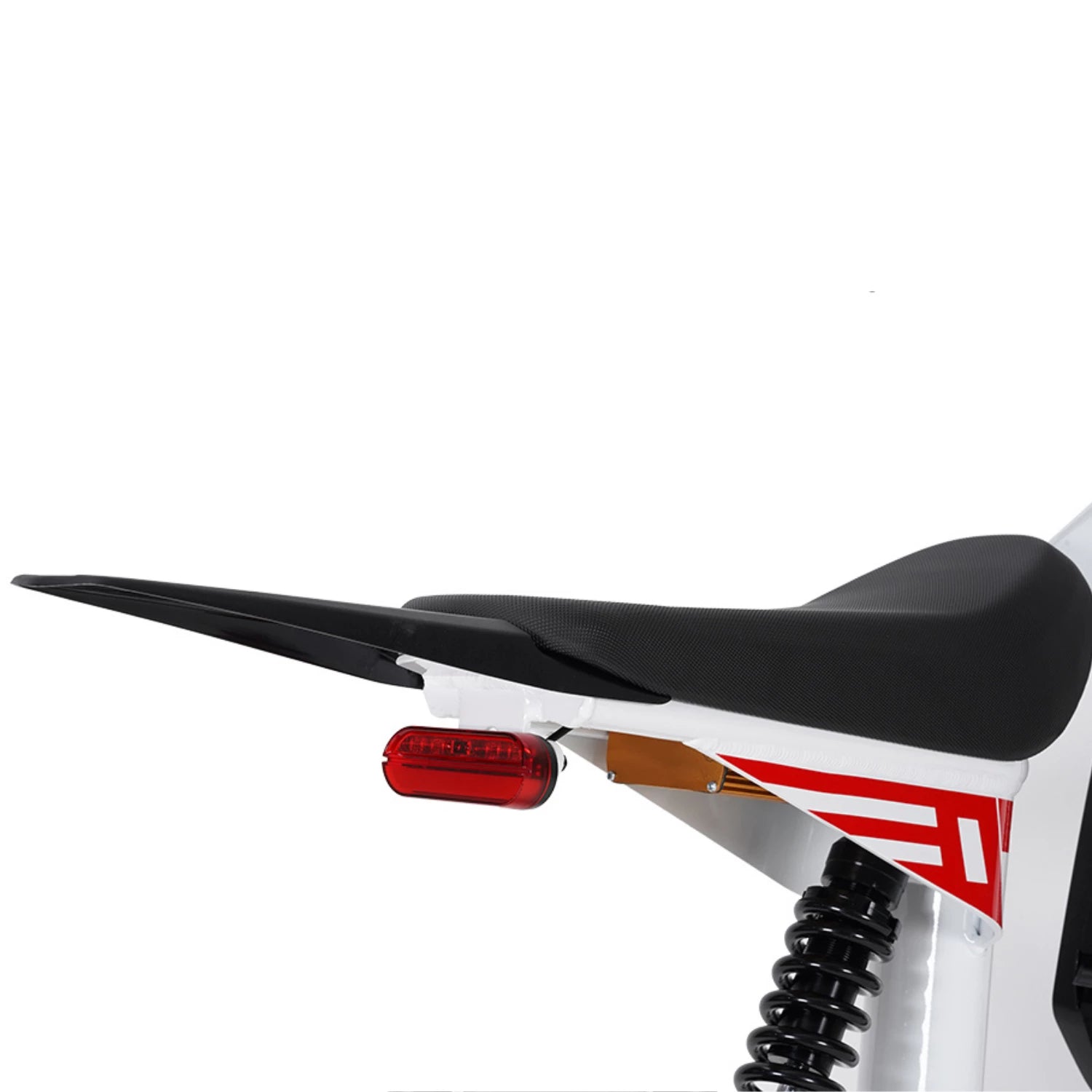

| Taillight Dimensions | 117 × 30 × 25 mm |
| Taillight with High-Brightness Brake Light | Yes |
| Maximum load | 120kg/265lbs |
| Motor type | Gear Motor |
| Motor working principle | Electric Power Steering |
Electric Bike * 1
Battery Charger * 1

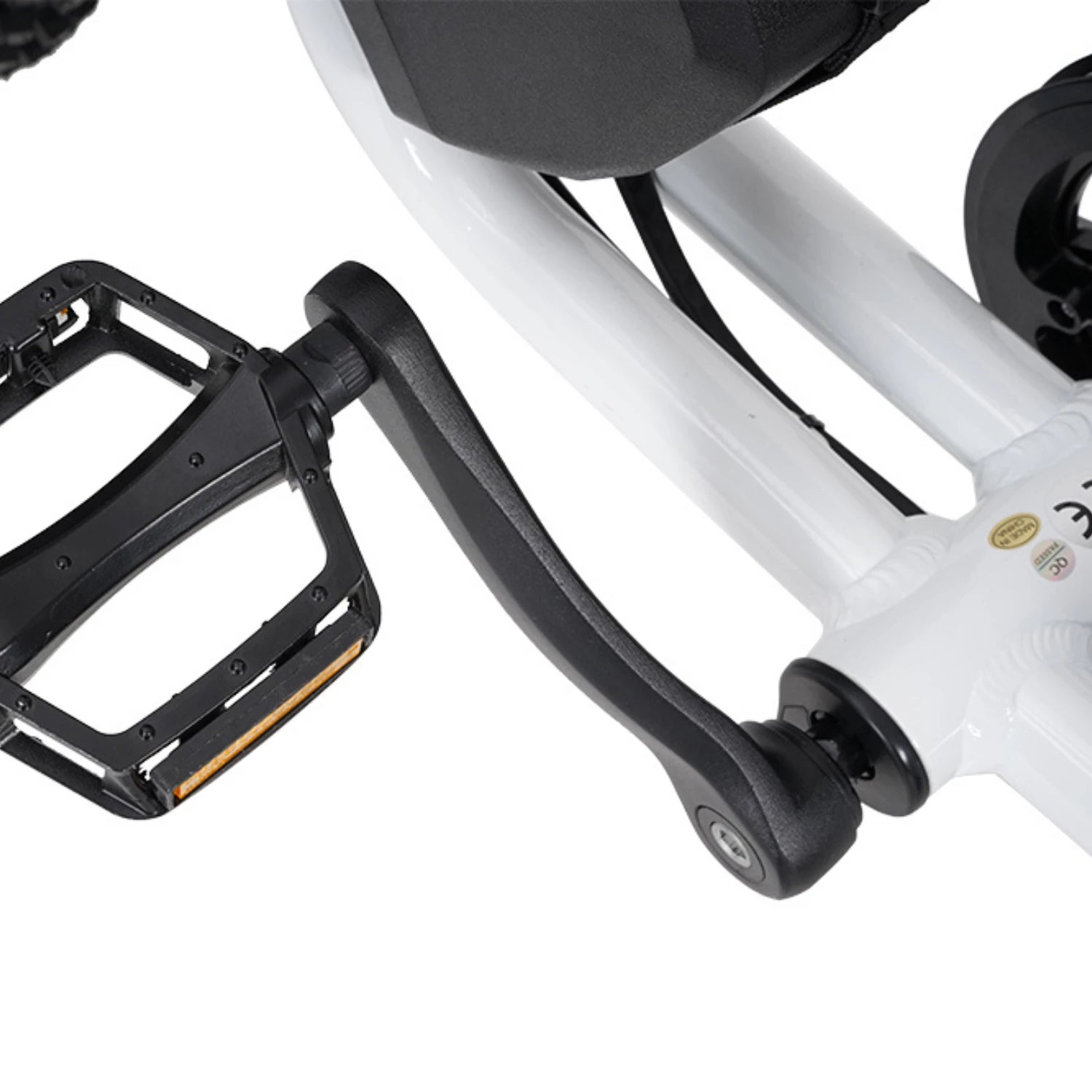

Pedals(left & right) * 2
Screws & Toolkit * 1
Owner's Manual * 1
Free Shipping
Shipping Time: 4-7 business days
Shipping Method: FedEx
Shipping origin: Germany
We offer a limited warranty of 12-18 months covering all Mangosteen electric bicycles. We warrant that all components and parts are free from defects in materials, quality, and workmanship. If any such problems are found during the warranty period, we will provide replacement parts free of charge. The warranty automatically takes effect from the date you receive your electric bicycle (no registration required) and terminates immediately upon the expiration of the warranty period.
12 Month Warranty: accessories and spare parts: stem, handlebar, headset, brakes (excluding brake pads), bottom bracket, crankset, pedals, kickstand, rims, wheel hub, freewheel, cassette, derailleur, frame, fork, motor, battery, throttle, LCD display, wiring harness, front light, rear light, and charger.
18 Month Warranty: motor, battery and shifter
Scegli le opzioni

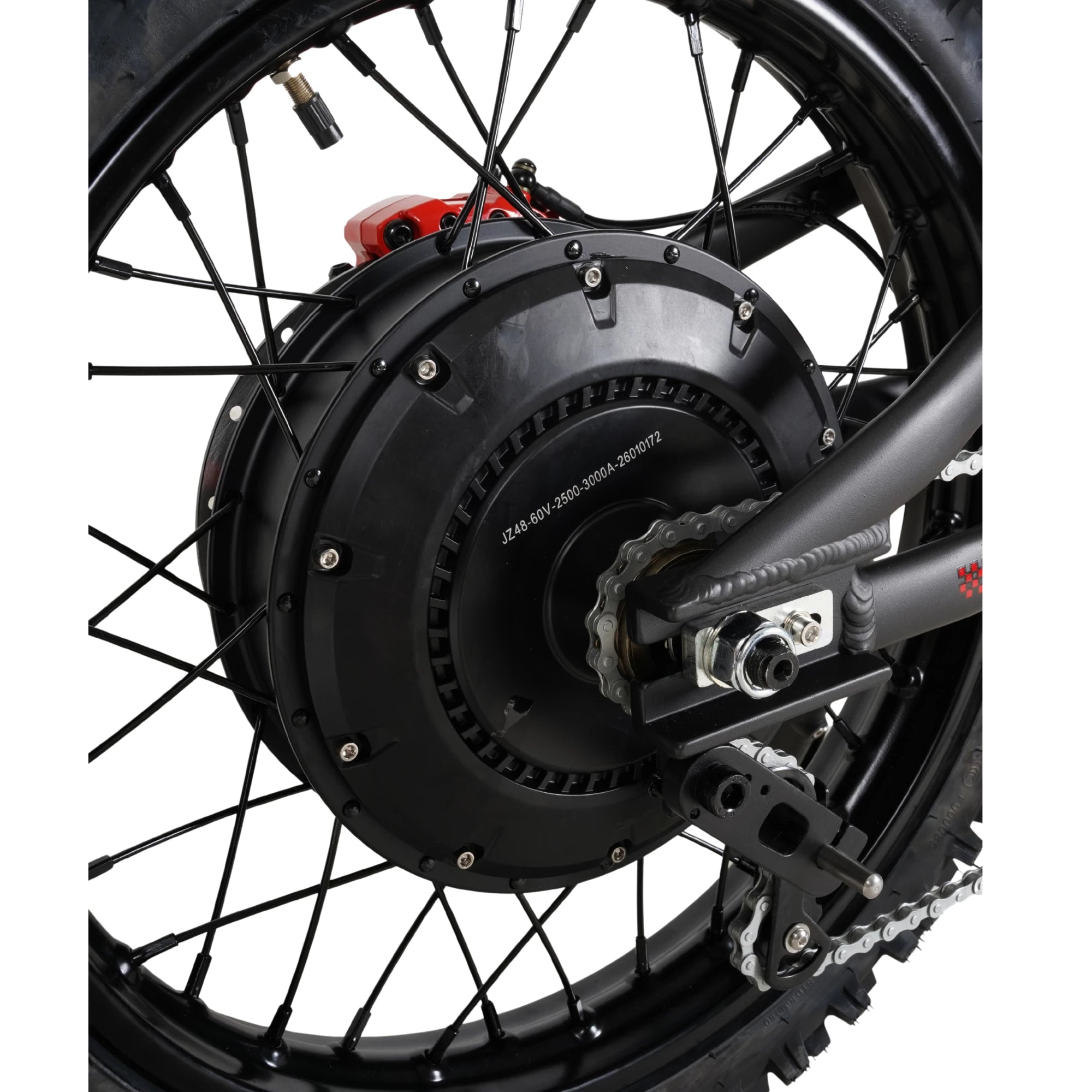

60v 2500w Power （3000W Peak）
Conquer climbs, crush trails—FT07 delivers 70kmh speed and 145 N·m torque with Kyushu motor precision.

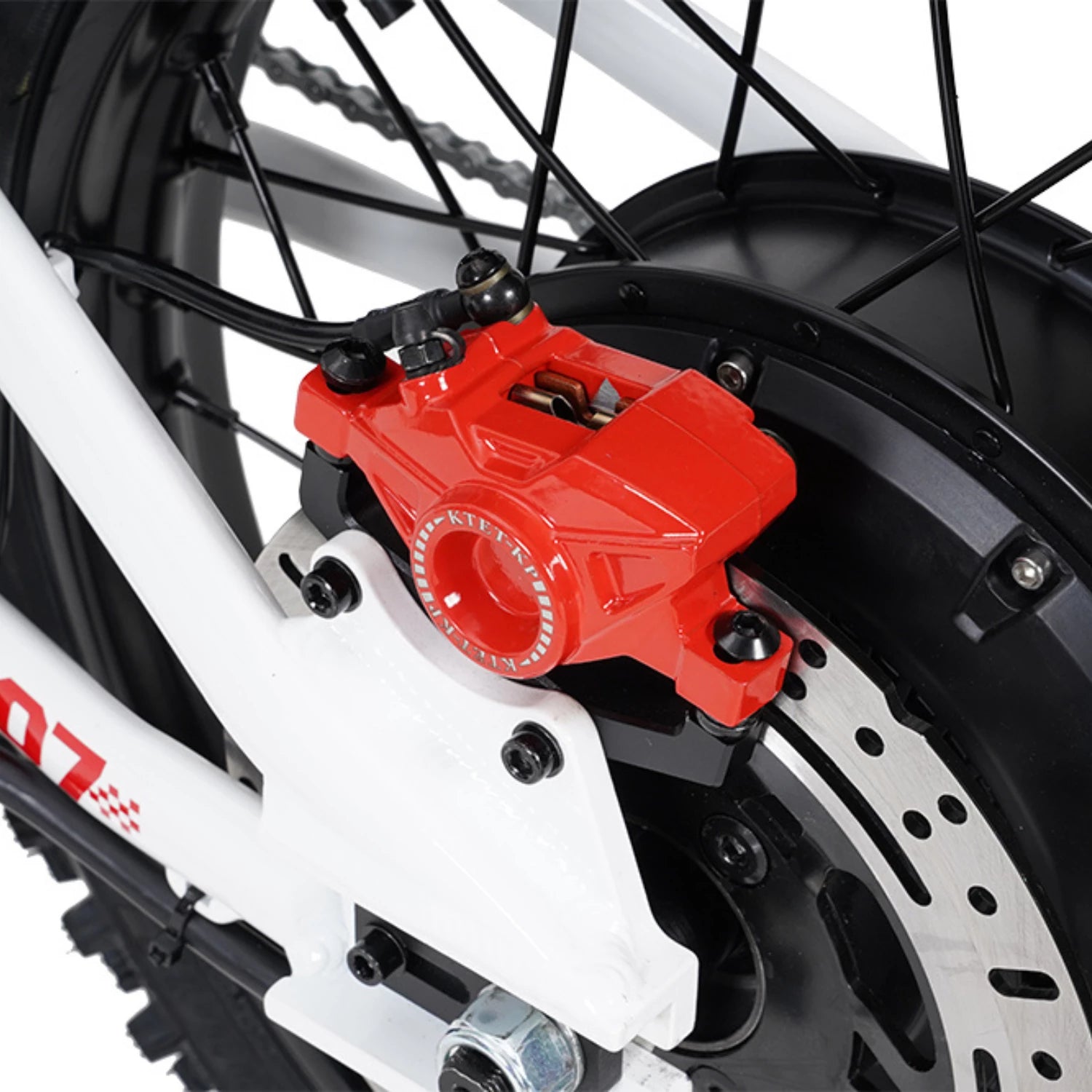

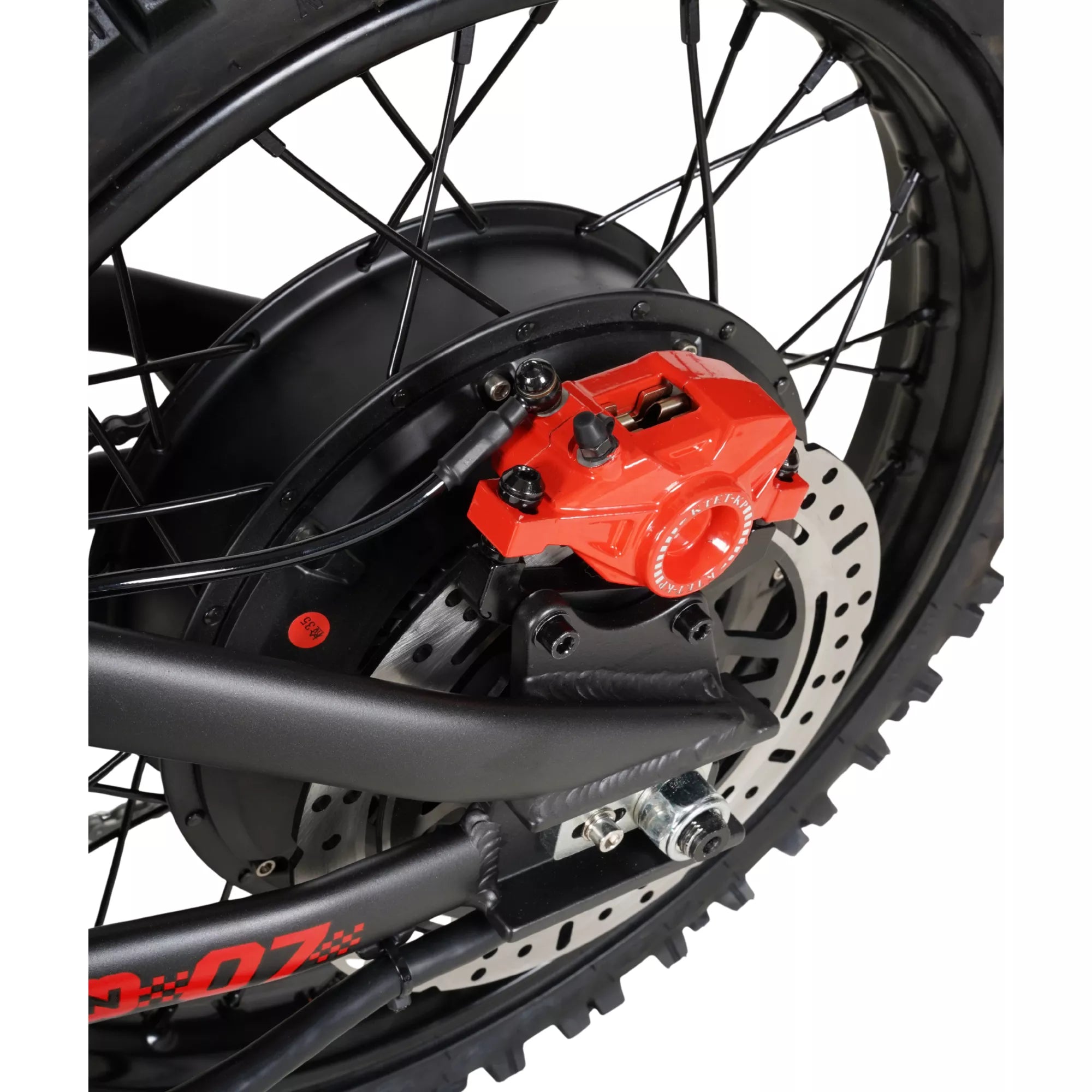

4-Piston Hydraulic Braking System
- Braking Performance Improved by 30%–50%: The FT07 adopts a four-piston design that simultaneously actuates the brake pads, delivering greater clamping force, faster response, stronger overall braking power, and shorter stopping distances. Braking force is typically 30%–50% higher than a dual-piston system. It is perfectly suited for high-speed or heavy-load emergency stops, significantly enhancing overall safety.
- Refined and Precise Control Feel: The FT07 offers a linear and excellent brake feel. Pressure is distributed more evenly across the pads, providing superior modulation. This results in a refined, precise control feel, allowing riders to accurately modulate braking force and effectively prevent wheel lock-up or skidding.
- Outstanding Heat Dissipation: The larger caliper volume and increased surface area effectively reduce high-temperature brake fade. Even during prolonged continuous braking (such as long descents or off-road riding), braking performance remains consistent with no noticeable loss of power.
- High-Strength and Durable Braking System: The more robust and stable structure ensures reliable performance in harsh off-road conditions such as mud, sand, and rain. It is highly resistant to deformation, oil leaks, or failure.

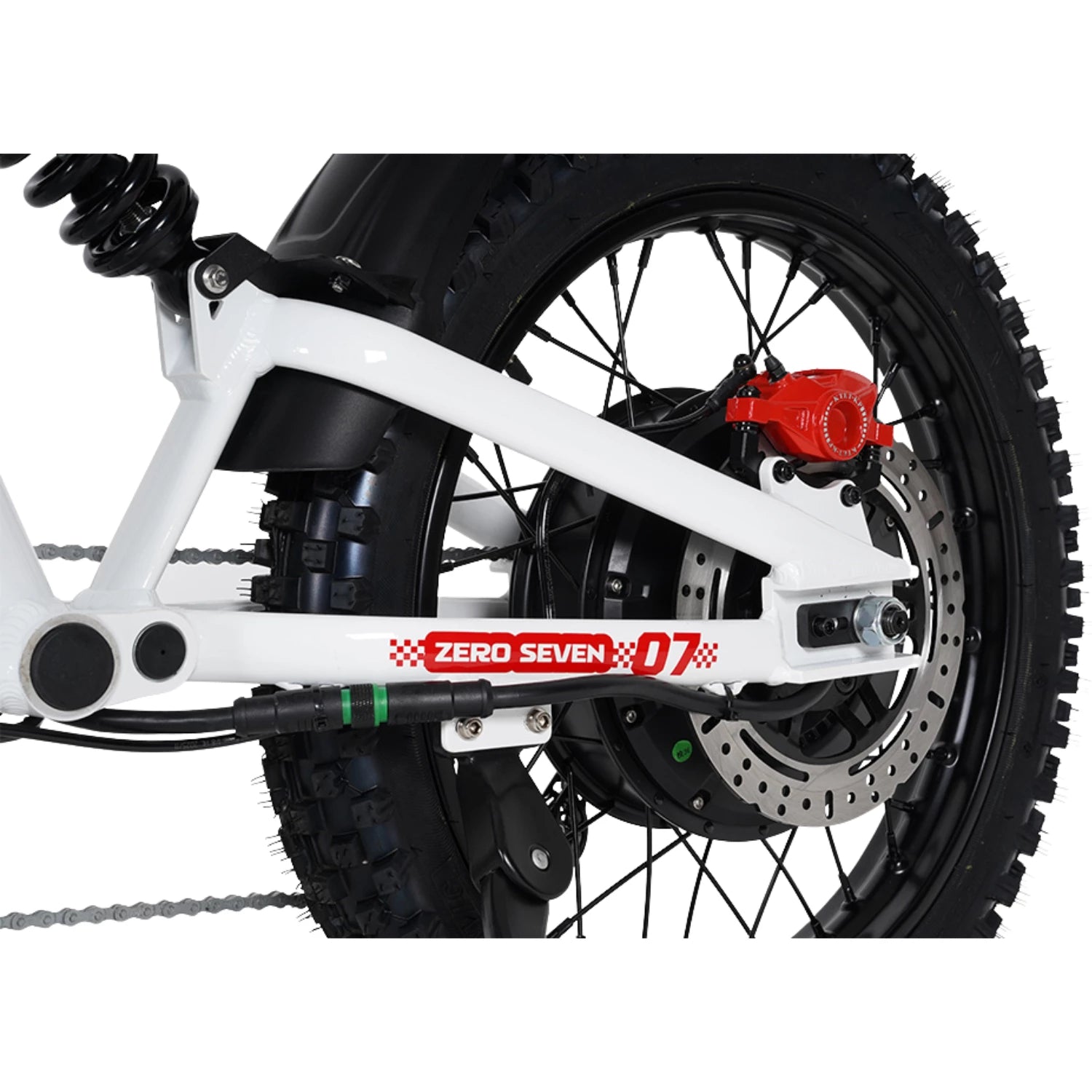

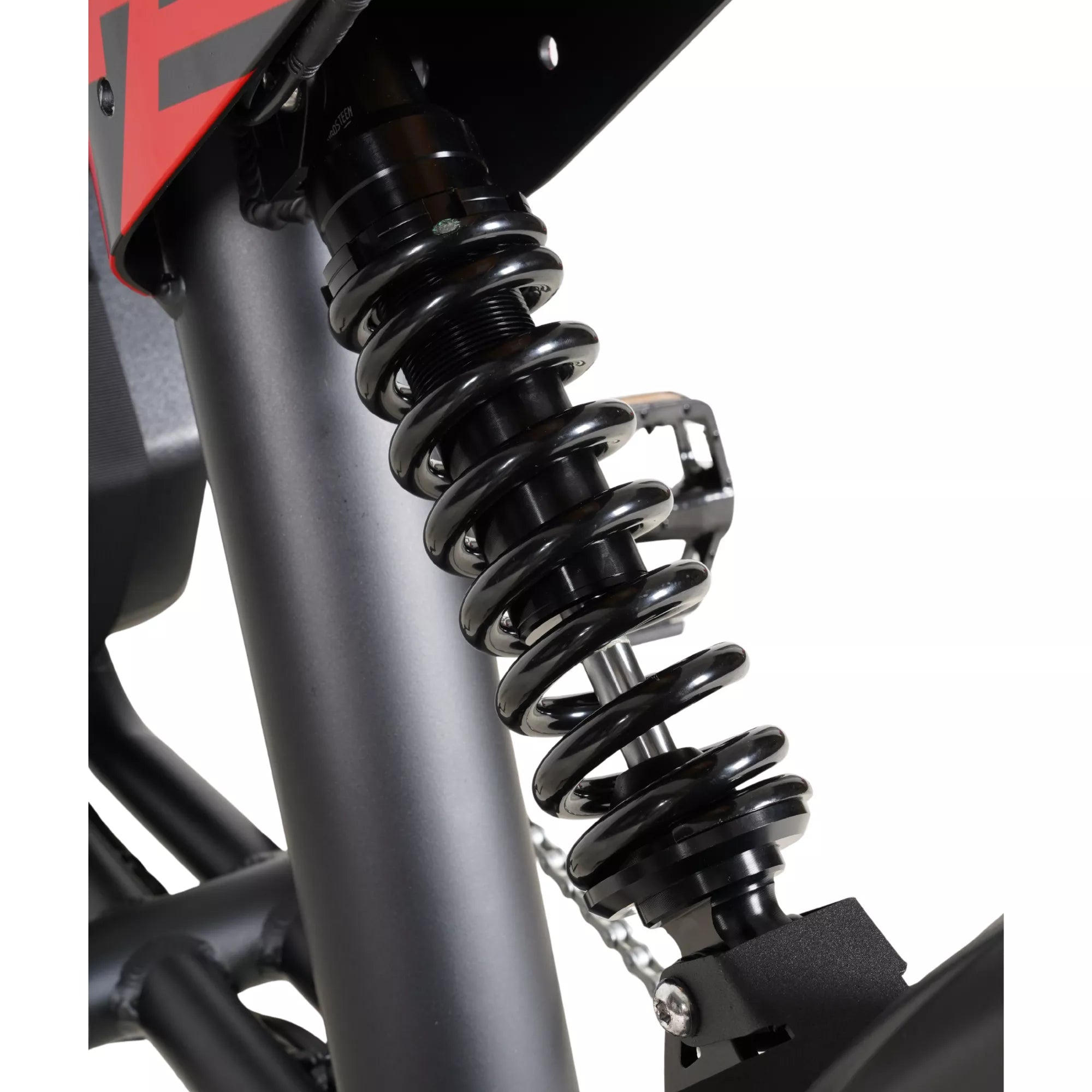

Full Suspension System
Absorb every impact—adjustable front damping and rear spring suspension keep you stable on rough trails and steep climbs.

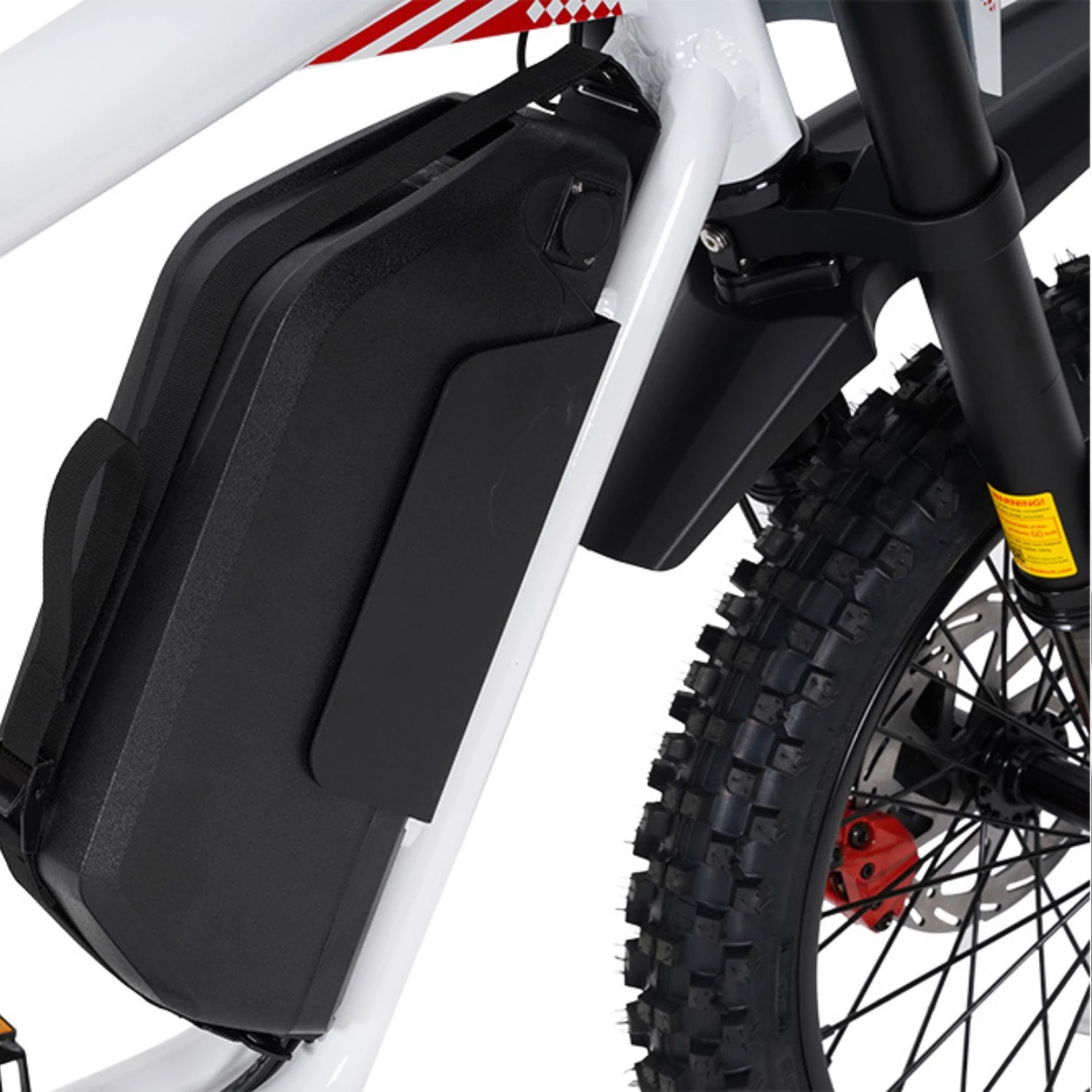

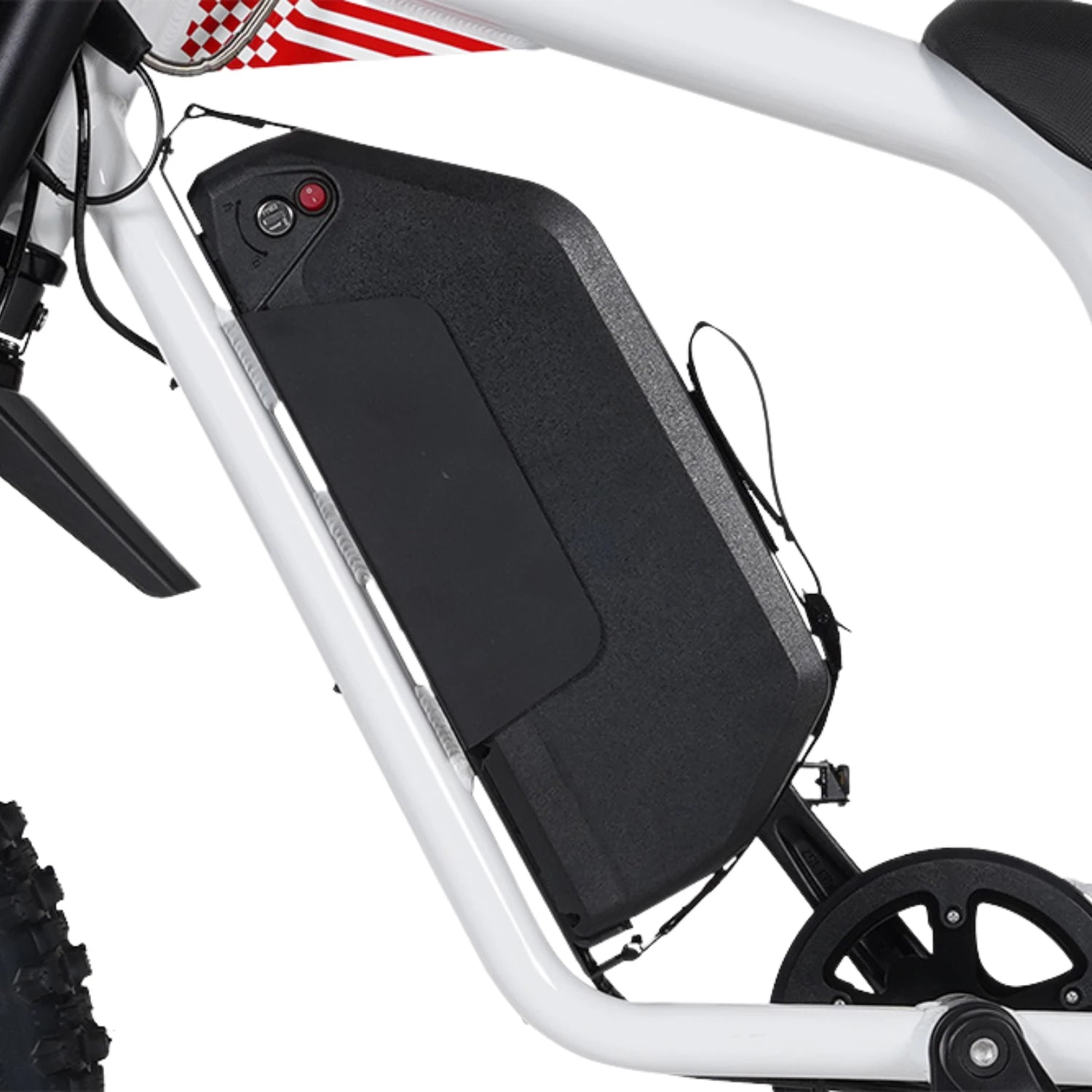

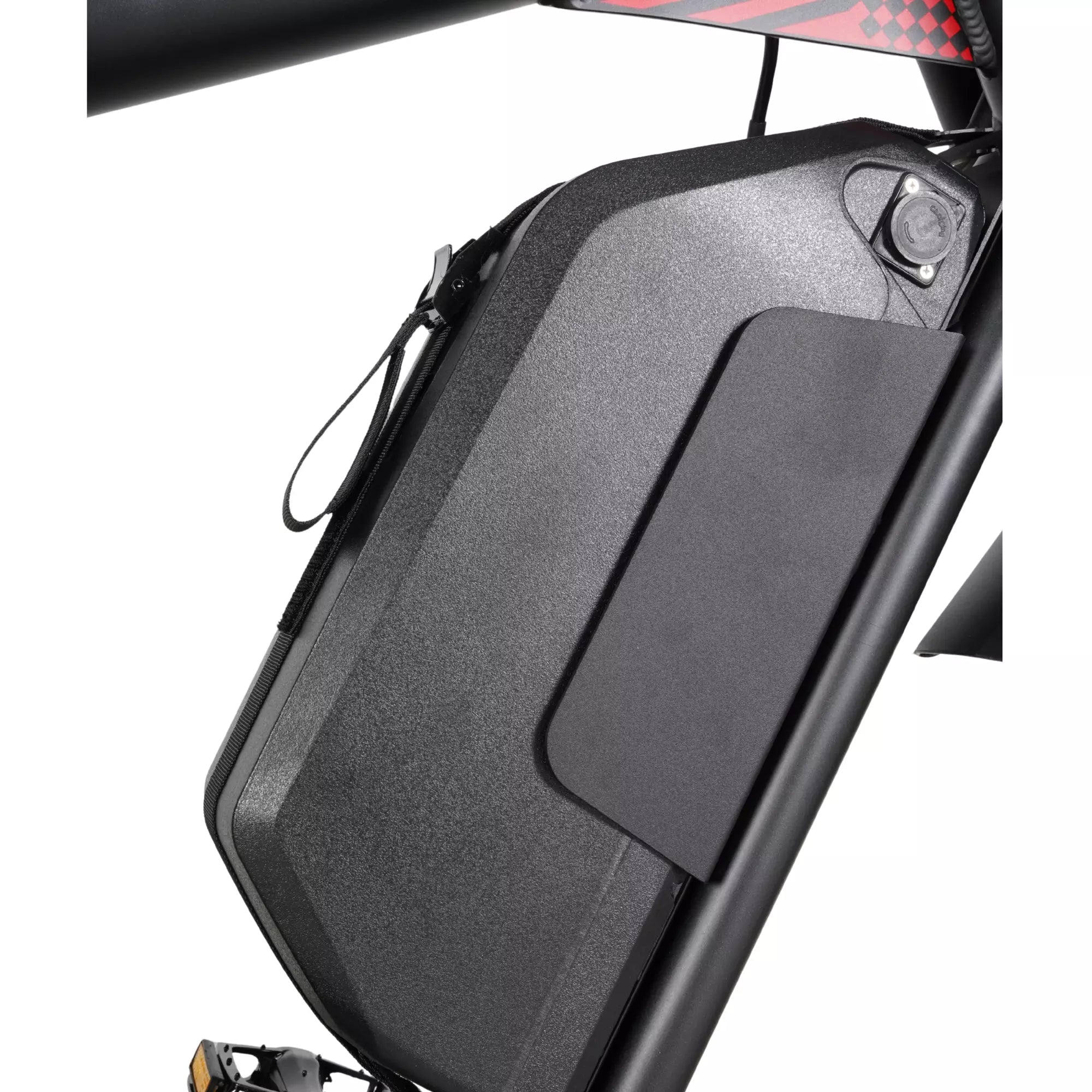

60V/25Ah Battery
Ride farther, charge faster—60V 25Ah battery with up to 50KM of electric range, When paired with pedals, it can travel up to 90km.ready again in just 5 hours.
Simple unboxing and assembly guide
FAQs
Mangosteen FT07 EU
Our FT07 is an electric off-road vehicle, unfortunately it is not street legal.
No customs duties are required. We ship from our warehouse in Germany. If your order amount is less than €159, you will need to pay shipping fees.
